Easy To Operate Split Mini 20W/30W/50W/60W/100W JPT M7 M8 IP 3D Mopa Color Fiber Laser Marking Machine for Metal Nonmetal
Model:LK-HD-20

Product Description

We have more than 10 years of design, development and production of laser marking machines, and each machine has been strictly tested and debugged before delivery,

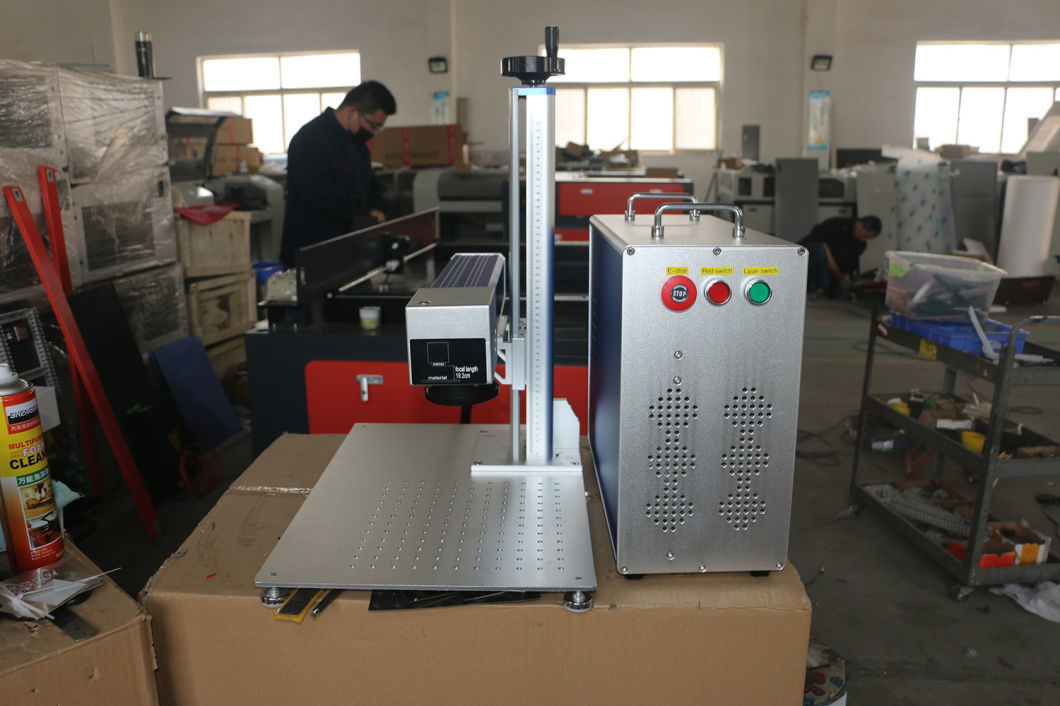

Perfect split laser marking machine, which is small and portable, occupies a small area, and the marking speed is twice that of the same type of laser. Imported lasers are used, and the service life of the core components can reach 100000 hours or more, without consuming materials.

According to different use scenarios, we can provide a wealth of marking machine accessories

Product Parameters

Model	LK-20FD
Work Area	110*110-300*300mm
Laser Power	20-100W
Fiber laser generator	Raycus/JPT/MAX
Laser scanner	Sino-Galvo SG7110
Red light dot	Yes
Power supply	Taiwan MW (Meanwell)
Wavelength	1064±10nm
Min Character	0.15mm
Marking Speed	≤10000mm/s
Power Supply	110V /220V(±10%)/50Hz/4A
Gross Power	<500W
Laser Module Life	100000h
Cooling Style	Air Cooling
Working Environment	Clean and Dust Free
Operating Temperature	10ºC-35ºC
Power	AC220V, 50HZ, 10Amp Stable Voltage
Warranty	3 years
Dimension (cm)	73*48*54cm
Weight (kg)	65kgs
Name	MINI Laser Marking Machine
Another Name	split Laser Marking Machine

1.3D precision marking
It can process products with different shapes and achieve all-round marking of planes, curved surfaces, high and low planes, cut planes, and continuous surface

2.Stereoscopic Deep carving
The professional 3D marking system can meet the requirements of fine engraving such as embossing, interior engraving and deep engraving, and the effect is three-dimensional and beautiful

3.More colors
For the stainless steel product industry, the color of the mark pattern can be added, and various text patterns can be edited at will, which is easy to operate
Use laser to mark black trademarks, models and characters on the surface of anodized aluminum materials

Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.

HEBEI LIKE LASER,

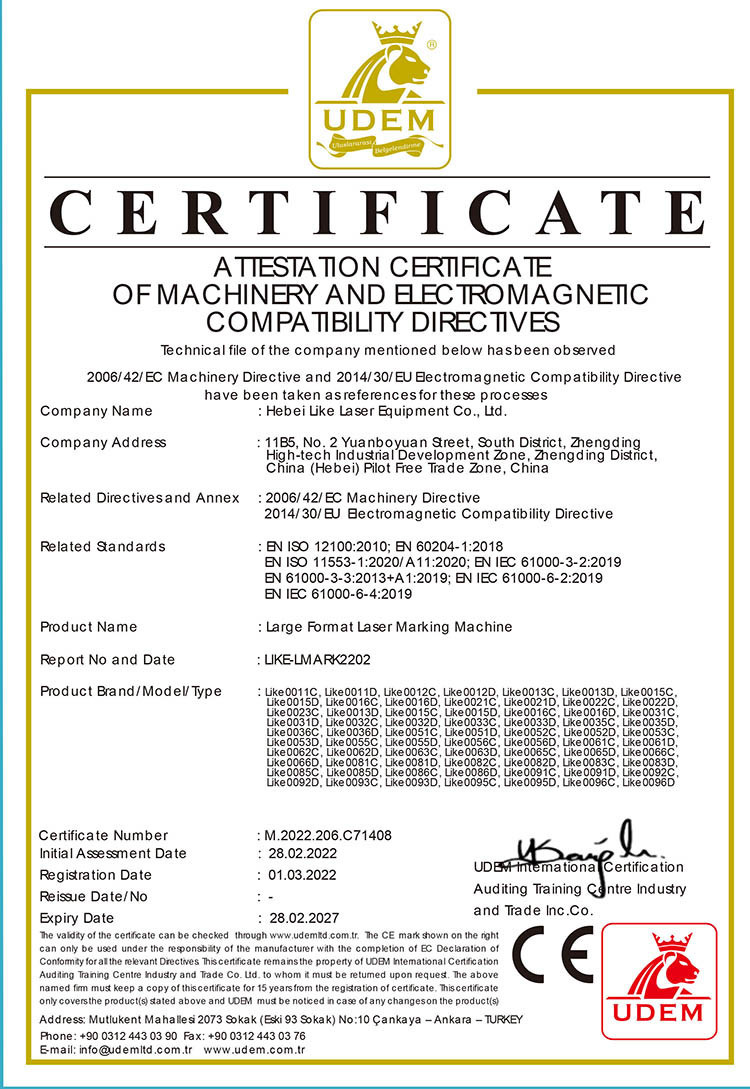

is established in July 2003 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American certificate and are certified to 9001.

Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,
more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of
1. Laser marking machine(Fiber/CO2/UV/Green light)
2.CNC Plasma cutting machine
3. Laser cutting machine
4. CNC knife cutting machine
5. CNC router and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

Please kindly tell us following information to get a quote:
* Which Material you need to marking?
* How about their maximum thickness?
* How about their maximum surface?
